TTP96AS PATCHBAY SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
TTP96AS PATCHBAY SERIES
TTP96AS

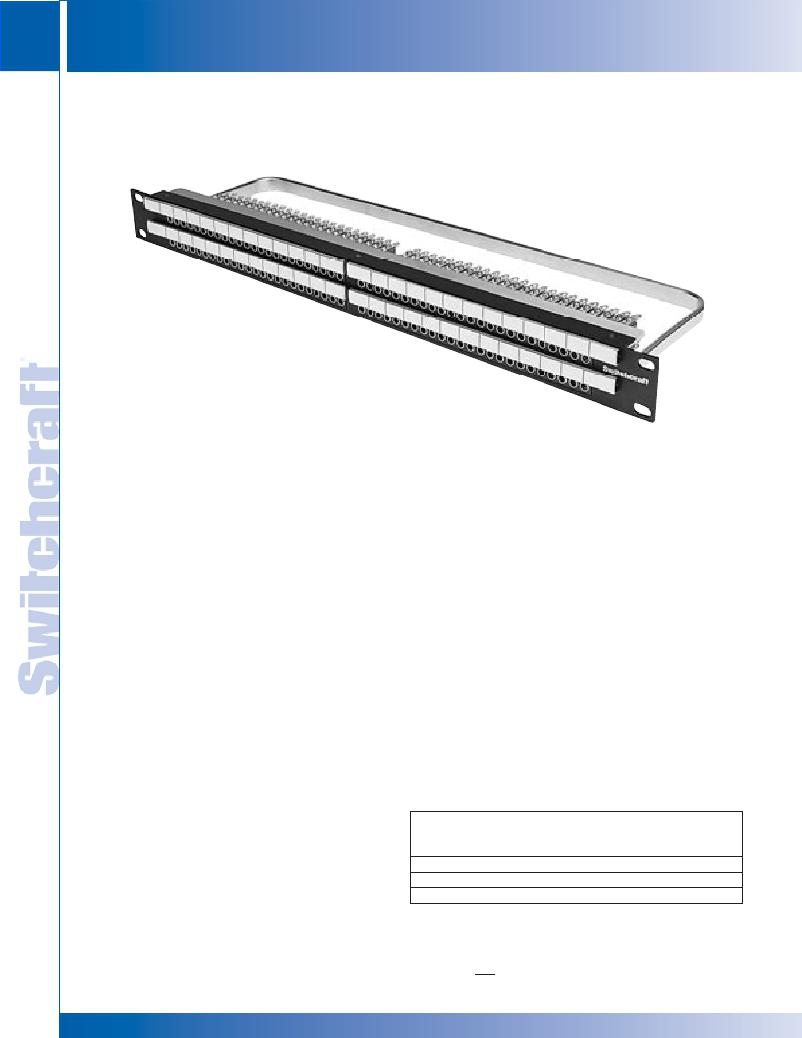

The TTP96AS Series of patchbays offer a rugged
cable tie bar to support rear cabling.
FEATURES AND BENEFITS
PANEL
?
?
?
?
?
Unit features 96 TT jacks
Attractive, corrosion resistant nickel-plated jacks
Steel frame jack for superior jack life
Extra wide labeling strips provide maximum space
Rugged cable tie bar takes the weight of
Frame: Black anodized aluminum
Inserts: Polyester, glass filled, 94V-0
Cable Support Bar: Cold rolled steel, nickel-plated
Designation Strips: Thermoplastic, 94V-0
Designation Strip Covers:
cables off the jacks
? Rugged, attractive black anodized aluminum
face will not break
? Three jack configurations available for the exact
switching arrangement you need: full normal,
half normal, and open circuit panel
? Fanned solder terminals for easier solder
connections
? Offset ground terminal for ease in making
common ground buss connections
? Gold switching contacts for long-term reliability
in normal-through connections
SPECIFICATIONS
MATERIALS
JACKS
Frame: Steel, nickel-plated
Bushing: Nickel-plated copper alloy
Springs: Copper alloy solder lugs
Ground Terminal: Steel, tin electrodeposited
Switching Contacts: Welded, gold alloy inlay
Clear thermoplastic, SE-1
Marking Strip: Rigid vinylite
Jack Mounting Screws: Steel, plated
Screws: Steel, black plated
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lbs. minimum
Environmental: 0°C to +50°C
ELECTRICAL
Contact Resistance: 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500VAC at 60 Hz
Working Voltage: 140VDC maximum
Current Rating: 100 milliamps
Ordering Information
over palladium base
Insulation: Rigid plastic spacers, rigid PVC
tubing through stack
Screws: Steel, plated
Part
Number
TTP96ASFN
TTP96ASHN
TTP96ASNN
Type of
Jack
TT
TT
TT
No. of
Jacks
96
96
96
Description
Full normals
Half normals
No normals
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
